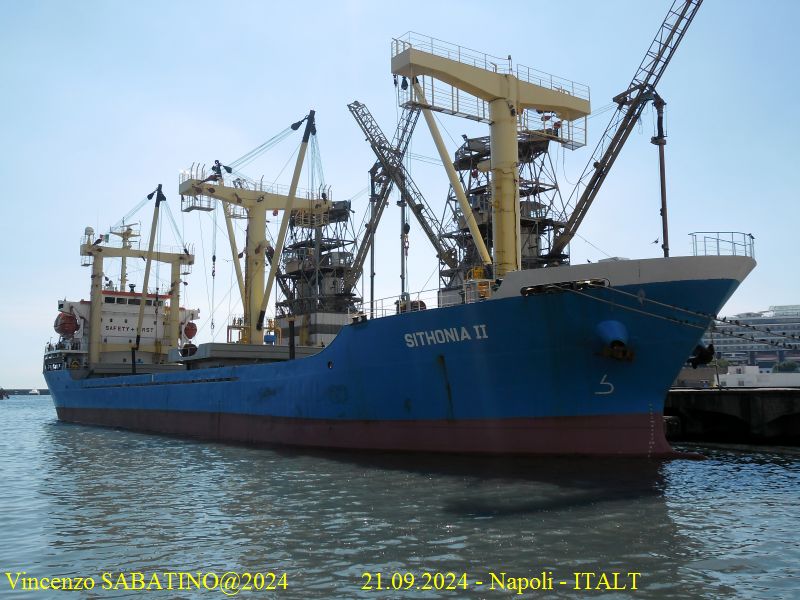

Nave da merce varia
|
||
|
SITHONIA
II
|
| Classificazione |
Classification | B.V.
n. 41480P - I |
|||
| Bandiera | Flag | Panama | |||
| Classe A.I.S. | A.I.S. Class |
CLASS
A
|
|||
| Armatore | Owner | SITHONIA SHIPPING MANAGEMENT SA - Greece | |||
| Operatore | Manager | ||||
| Impostazione chiglia | Keel laid | ||||
| Varo | Launched | ||||
| Consegnata |
Delivered | 2007 | |||
| Cantiere navale | Shipyard | Yahua Shipbuilding - Nantong -China | |||
| Costruzione n. | Yard number | 723 | |||
| Tipo di scafo | Hull type | Scafo singolo - single hull | |||
| Materiale dello scafo | Hull material | acciaio - steel | |||
| Nominativo Internazionale | Call Sign | 3
F R W 3 - |
|||
| I.M.O. International Maritime Organization | 9455571 | ||||
| M.M.S.I.
Maritime Mobile Service Identify |
373463000 | ||||
| Compartimento Marittimo | Port of Registry | Panama | |||
| Posizione attuale | Actual position | ||||
| Stazza Lorda | Gross Tonnage | 5.321 Tons | |||
| Stazza Netta | Net Tonnage | 3.065 Tons | |||
| Portata
(estiva) |
DWT (summer) | 8.790 Tonn | |||
| Lunghezza max | L.o.a. | 111,89 m | |||
| Lunghezza tra le Pp | L. between Pp | 103,30 m | |||
| Larghezza max | Breadth max | 18,60 m | |||
| Altezza di costruzione | Depth | 9,50 m | |||
| Bordo libero | Freeboard | 2.015 mm | |||
| Pescaggio max | Draught max | 7,50 m | |||
| Motore
principale |
Main engine | 1 - HANSHIN DIESEL 4T -6 cyl -460 x880 mm -220 rpm | |||
| Potenza Motori | Engine power | 3.309 kW | |||
| Velocità
massima |
Max speed | 14,40 kts | |||
| Eliche
di propulsione |
Propellers | 1 - passo fisso / fixed pitch | |||
| Bunker | Bunker | F.O. 665,3 m3 | |||
| Stive | Holds | 4 - | |||
| Boccaporti | Hatches | 4 - | |||
| Volume stive | Cargo capacity | ||||
| Teu | Teu | ||||
| Mezzi di carico | Cargo gear | 4 - bighi / derricks | |||
| Acqua di zavorra | Ballast water | ||||
| Navi gemelle | Sister ship | ||||
| Inserita | Posted |
15.03.2026
|
|||
|
Aggiornata
al
|
Last
updated
|
15.03.2026
|
|||
|
|||||
